| Message: | Y43H Pilot piston type steam pressure reducing valve.
Structural characteristic and purpose
This series reducing valve is pilot piston type reducing valve for steam, mainly composed of main valve and pilot valve. The main valve consists of valve seat, main valve disc, piston, cylinder sleeve, and spring. The piston valve consists of valve seat, valve flap, membrane, spring and adjusting spring. Set the outlet pressure through adjusting spring, sense the change of pressure of outlet with membrane, adjust the flow area of throttling part of main valve through open and close of pilot valve and drive the piston, to realize the function of reducing and regulating valve. The product is mainly applied on steam piping, to reduce and regulate the pressure.

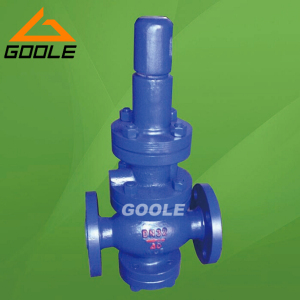

Y43H Pilot piston type steam pressure reducing valve.
main technical parameters and indexes of performance.
Product: Pilot piston type steam pressure reducing valve
Pressure Rating: 1.6- 16.0Mpa
Specification: DN15-500
Material: Steel WCB, CF8
Standard flanges: DIN, ANSI, JIS
Nominal pressure PN1.6Mpa PN2.5Mpa PN4.0Mpa PN6.4Mpa PN10.0Mpa PN16.0Mpa
Tested pressure of shell 2.4Mpa 3.75Mpa 6.0Mpa 9.6Mpa 15.0Mpa 24.0Mpa
Sealing test pressure 1.6Mpa 2.5Mpa 4.0Mpa 6.4Mpa 10.0Mpa 16.0Mpa
Maximum upstream pressure 1.6Mpa 2.5Mpa 4.0Mpa 6.4Mpa 10.0Mpa 16.0Mpa
Pressure range of outlet 0.1-1.0Mpa 0.1-1.6Mpa 0.1-2.5Mpa 0.5-3.5Mpa 0.5-3.5Mpa 0.5-4.5Mpa
Minimum differential pressure 0.15Mpa 0.15Mpa 0.2Mpa 0.4Mpa 0.8Mpa 1.0Mpa
Medium steam
Operating temperature 425
*the shell test does not include membrane and top cover. |
