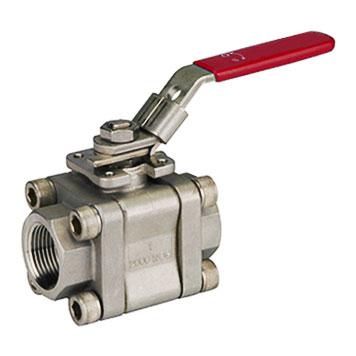

| Message: | China LF2 3PCS Carbon Steel Ball Valve Manufacturer Shinjo Supplies LF2 3PCS Carbon Steel Ball Valve, Class 800/1500/2500, Threaded, SW, BW Ends.
Features:
Size: 1/2"~2" (DN 15 - 50 mm).
Class: 800/1500/2500.
Three Pieces Forged Steel Body.
Floating Ball, Full Bore.
Anti-Static Device.
Screwed and Socket Welded Ends.
Blow-out Proof Stem.
Standard:
Design: ASME B16.34/BS 5351.
Face to Face: Manufacturer Standard.
End to End: Manufacturer Standard.
Threaded End: ASME B1.20.1.
Socket Welding & BW End: ASME B16.11.
Test: API 598/BS 6755.
Fire Safe Test: API 597/API 6FA.
Part Material: LF2/316NACE
1. Adapter: ASTM A350-LF2.
2. Body Bolt: ASTM A320-L7M.
3. Spring Washer: Stainless Steel.
4. Body Nut: ASTM A194-4.
5. Body: ASTM A350-LF2.
6. Seat: PTFE.
7. Ball: ASTM A182-316.
8. Stem: ASTM A276-316.
9. Thrust Washer: PTFE.
10. Stem Packing: PTFE.
11. Gland: ASTM A276-316.
12. Stop Plate: Carbon Steel.
13. Stop Pin: Stainless Steel.
14. Spring Washer: Stainless Steel.
15. Lever Nut: ASTM A194-7M.
16. Lever: Carbon Steel.
17. Antistatic Spring: Stainless Steel. |
