Fully Automatic NM Cable Stripper Machine |
Create: 05/05/2018 |
Expired Date: | 12/31/2030 |
Category: | Stripping tools [Equipment&Machinery] |

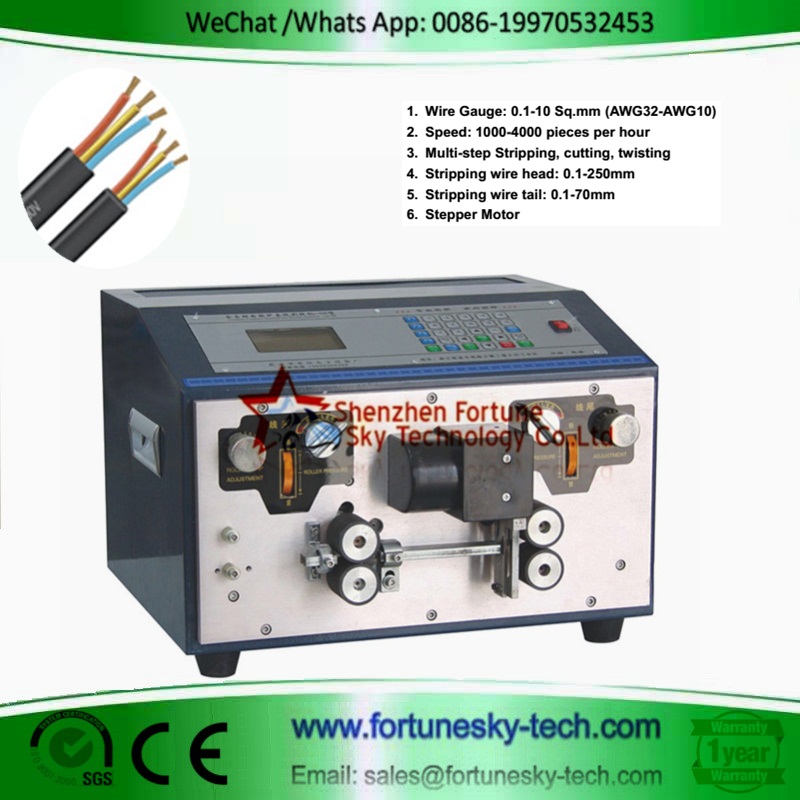

Message: | This fully automatic nm cable stripper machine on submersible pump cable uses hybrid drive, SMC pneumatic components, microcomputer full LCD control system, with a wheel function to improve the length and stability of the stripping length. • ) nm cable: outer sheath and insulation of multi conductor cable can be one-time processing completed. • ) power cord: outer sheath can be stripped only. Model No. BJ-900 Function Wire cutting, both-ends stripping, middle stripping Applicable Wire Size 0.1-10 Sq.mm (AWG32-AWG10) Speed 1000-4000 pieces per hour (decided by wire) Wire Cutting 0.1-99999.9mm Stripping section 13 Wire Stripping Strip front: 0.1-250mm Strip tail:0.1-70mm Motor accuracy 0.1mm per step by mute stepper motor Function Automatic wire inlet/outlet, timing start Driven Mode 4 wheels Machine Size 420(L)mmx297(w)mmx345(H)mm Net Weight 28KGS Cutter Material Imported Tungsten Steel or High speed Steel |
City: | Dongguan[CN] |
