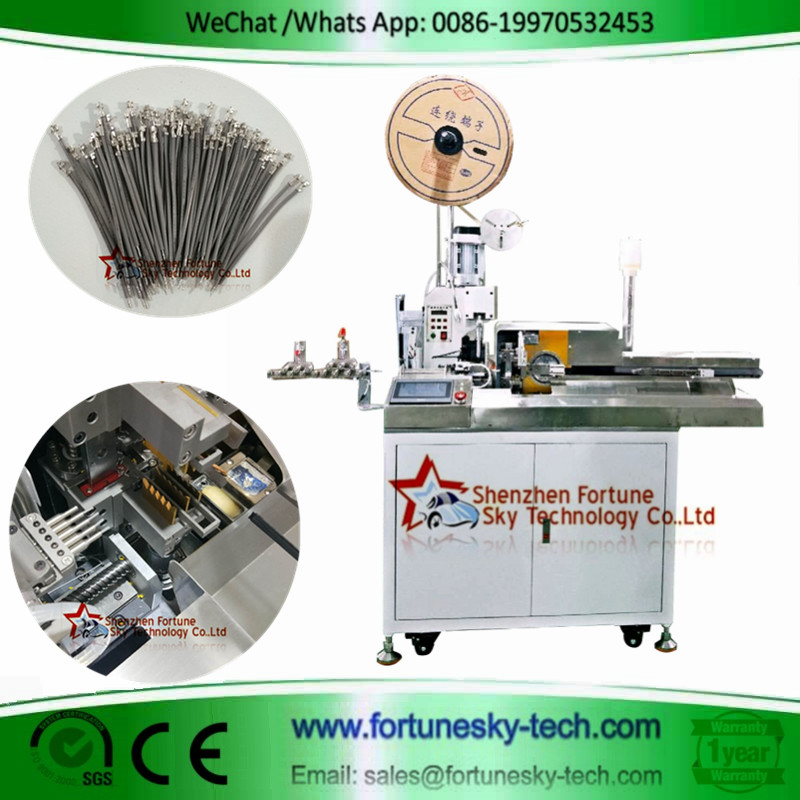

| Message: | Fully automatic five wires one-end strip crimp one-end strip twist tinning machine is computerized numerical control debugging: knife size, cutting length, stripping length, flux depth, tin depth, all realize digital touch screen operation. its functions: Wire cutting, single-end stripping, double-ends stripping, single-end crimping, single-end twisting, single-end tinning (optional opening and closing)
Feature:
1.Computerized touch screen English/Chinese operation menu,easy to learn and use;
2.Rapid replacement of process and materials,high efficiency,high precision,fast speed and convenient maintenance;
3.The machine adopts servo control and five sets of servo motors (Mitsubishi Servo)
4.Pneumatic components:solenoid valve + cylinder (Taiwan Airtac)
5.Screw guide:Taiwan CPC/Hiwin
6.Color Touch Screen: Kinco (Taiwan)
7.Computerized numerical control debugging: knife size, cutting length,stripping length,flux depth,tin depth,all realize digital touch screen operation.
Specification:
Model No.:HNW-835
Functions:Wire cutting,single-end stripping,double-ends stripping,single-end crimping,single-end twisting,single-end tinning (optional opening and closing)
Cutting length:32mm-650mm (long wire can be customized)
Cutting accuracy:0.2+/-0.02xL
Stripping length:0.1mm-11mm
Wire diameter:0.6mm-3.5mm
Tinning length:1mm-11mm
Twisting length:2mm-10mm
General wire diameter:AWG16-AWG32
Crimping Force:2.0T Terminal Machine
Working speed:
cutting length 100mm,6000 pcs/hour;
cutting length 220mm,5200 pcs/hour
Air pressure:0.5-0.7MPA
Detection device:crimping detection,wire missing detection,wire knotting detection,terminal presence or absence detection.
Blade material:high speed steel
Body size:1500x800x1600mm
Body weight:290KG
Auxiliary Device:terminal waste paper rewinding device
Power supply:AC220 single-phase 8A |
