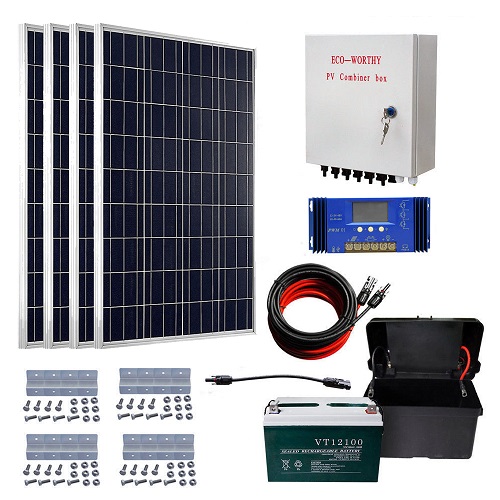

| Message: | Package Included:
4pcs 100W poly solar panel
1pc 6-string PV combiner box
1pc 100aH battery with battery box
1pc 60A solar charge controller
2pcs 5m(16.4') 4mm² solar cables (totally 32.8')
4sets Z style mounting kit
1. Basic component for the resident solar system.
2. Widely used on marine, dry camp, Garden watering, and other off-grid applications.
3. Easy installation with the pre-drilled hole. By-Pass Diode minimized the impact of shade.
4. Waterproof IP-65 Rated Junction Box: Advanced water and dust proof level (complete protection against environmental particles and low-pressure water jets). Resistance to salt corrosion and humidity.
5. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced Safety and anti-reflection coated glass 3.2mm thick (tempered + patterned).
Specification
Rated power 100W
Voc 22.41V
Vop 17.9V
Short circuit current (Isc) 6.2A
Working current (Iop) 5.59A
Output tolerance ±3%
Temperate coefficient of Isc (010+/- 0.01 )%/ ℃
Temperate coefficient of Voc - (0.38 +/-0.01 )%/ ℃
Temperate coefficient of power Voc -0.47%/℃
Temperature range -40℃ to +80℃
Frame Heavy duty aluminum
Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm
SLA Battery Voltage 12V
Dimensions (L x W x H)mm 665*996*35mm(26.16*39.3*1.37 in)
Weight 24lbs(11Kg)
Warranty 25-year transferable power output warranty: 5-year/95% efficiency rate;
10-year/90% efficiency rate, 25-year/80% efficiency rate ;
5-year material and workmanship warranty; |
