| Message: | Package Included
1pcs 100W Mono Solar Panel

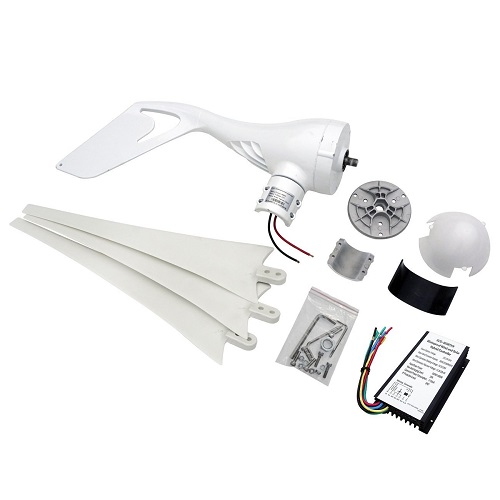

1pc Wind Turbine Generator
1pc turbine hybrid controller (which can connect to solar panel & wind generator , and it auto work with 12V/24V)
1 pair MC4 connector with 12cm wire (which for connect the solar panel and controller)
This 100W Mono solar panel with its high power output and the robust design the right solution for a stand-alone system. Even on cloudy days, the solar panel delivers a high energy yield. The panel is covered by a special tempered glass to protect against environmental conditions such as hail, snow and ice. The panel frame made of anodized aluminum ensures the stability.
1. Easy installation with pre-drilled hole.
2. By-Pass diode minimized the impact of shade.
3. Waterproof IP-65 rated junction box: advanced water and dust proof level (complete protection against environmental particles and low-pressure water jets)
4. Resistance to salt corrosion and humidity.
5. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa).
6. Lightweight anodized aluminum frame and reinforced safety and anti-reflection coated glass 3.2mm thick (tempered + patterned).
Specification
Rated power 100W
Voc 21.6V
Vop 18V
Short circuit current (Isc) 6.11A
Working current (Iop) 5.55A
Output Tolerance ±3%
Temperate coefficient of Isc (010+/- 0.01 )%/ ℃
Temperate coefficient of Voc - (0.38 +/-0.01 )%/ ℃
Temperate coefficient of power Voc -0.47%/℃
Temperature range -40℃ to +80℃
Frame Heavy duty aluminum
Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm
SLA Battery Voltage 12V
Dimensions (L x W x H)mm 1010mm*510mm*35 mm（39.8*20.1*1.4 In）
Weight 8.6kg |
