| Message: | Producing customized 2ch video multiplexer over one coax of high performance, we are here waiting for you, and we can offer you 2ch video multiplexer over one coax wholesale service.Video Multiplexer System

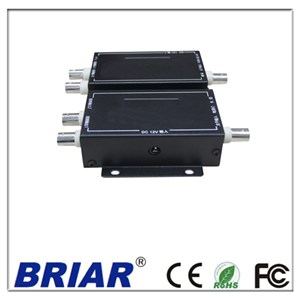

Model: SD-S700V2N
User Manual 1.Brief Introduction
The 2channels video multiplexer can realize transmit 2 channels Homonymous and reverse video signal in one cable at the same time, increase cable use radio effectively, there are characteristics HD image, convenient installation, without adjustment, stable and reliable etc. 2.Characteristics
1,Transmit 2CH single or bi-direction video real-time HD signal in one coaxial cable;
2,Transmission distance up to 700m,still transmit 500m from the first channel(remark: multi-core video coaxial cable SYV75-5/3-2 have a short transmission distance, about 200m from main core)
3,Built-in anti-statics protection circuit
4,Without adjustment,have a stable working status;
5,HD image with built-in double seven order dressing filter. 3.Specification Item Unit Parameter Item Unit Parameter Output raterangeMHzVIDEO2 0-8MHZ VIDEO1 30-40MHZPower supplyVDC 12VOutput level rangedB105Actual working currentMA100ma transmitter
120ma receiverOutput impedanceΩ75Working temperature℃-30-50OOB suppression degreedB>60Transmitter sizemm90*51*24(not including joint)Video input rangeVpp0.8-1.5Receiver sizemm90*65*24(not including joint)Video output rangeVpp0.8-1.5Transmission distancem700m(besides -2multi-core lines)4.Connecting Diagram url:http://www.avideotransmitter.com |
