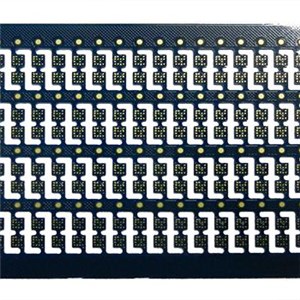

| Message: | Union Circuits can make 2 ~ 16 Layer Rigid-flex PCBs, Rigid-flex circuits are a hybrid construction flex circuit consisting of rigid and flexible substrates which are laminated together into a single structure. Rigid-flex circuits should not be confused with rigidized flex constructions, which are simply flex circuits to which a stiffener is attached to support the weight of the electronic components locally. A rigidized or stiffened flex circuit can have one or more conductor layers. Thus while the two terms may sound similar, they represent products that are quite different.The layers of a rigid flex are also normally electrically interconnected by means of plated through holes. Over the years, rigid-flex circuits have enjoyed tremendous popularity among military product designer, however the technology has found increased use in commercial products. While often considered a specialty product for low volume applications because of the challenges, an impressive effort to use the technology was made by Compaq computer in the production of boards for a laptop computer in the 1990s. While the computer's main rigid-flex PCBA did not flex during use, subsequent designs by Compaq utilized rigid-flex circuits for the hinged display cable, passing 10s of 1000s of flexures during testing. By 2013, the use of rigid-flex circuits in consumer laptop computers is now common.Rigid-flex boards are normally multilayer structures; however, two metal layer constructions are sometimes used.Key Specification Layer Count2~16MaterialPolyimide, PI, Kapton, DuPont Kapton, FR-4(Tg170) Finished Thickness0.8~2.0mmFinished Outer Cu Thickness1OZ, 2OZFinished Inner Cu ThicknessHOZ, 1OZ, 2OZSurface FinishImmersion Gold, OSPSoldermask + CoverlayOrange coverlay color, Green soldermaskSilkscreenWhite, BlackPanel Size250x500mm(max)Attention: "These are the basic specifications we gonna to need for your Printed Circuit Board fabrication, if you need a quick quote or going to order soon, to save time please k......url:http://www.unitpcba.com |
