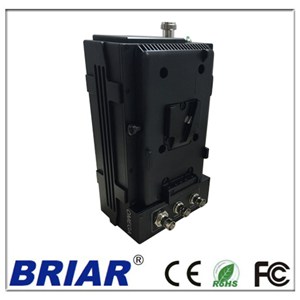

Live Broadcasting Wireless HD AV Transmitter

Create: 10/20/2016

Expired Date:	10/21/2018
Category:	Home&Garden Supplies
Message:	Producing customized live broadcasting wireless hd av transmitter of high performance, we are here waiting for you, and we can offer you live broadcasting wireless hd av transmitter wholesale service.Name：Live broadcasting wireless HD AV TransmitterModel：SD-BR105Special Features：1)COFDM modulation,stability signal2)HD-SDI/HDMI and BNC input3)Bandwidth 4/8MHz adjustable4)HD & composite video input5)Balanced stereo audio input.6)Dual V battery mounts7)1-5.5W rf power output adjustable8) Live broadcasting ,low delay timeReadMe：Ports&Dimension: Specifications:Power supplyDC InputDC11-16VWorking Current1.9A@12VVideo transmission:Frequency range Output300-800MHz（optional）, 1.2G/2.4G/4.4GHz (customized)ModulationCOFDM,2K ,QPSKRF bandwidth4/8MHz(adjustable)RF Power output1-8W(adjustable)SHG>52dBcEncryptionAES128/256bitsConstellationQPSK,16QAM,64QAMFEC1/2,2/3,3/4,5/6, 7/8Guard Interval1/32,1/16,1/8,1/4Carrier2K,8KFlatnessFull band≤2dB,8MHz≤0.5dBAV inputBNC: D1 standard definitionHDMI: HD1080i/1080P, 720P, 576, 480HD-SDI：HD1080i/1080P, 720P, 576, 480CNR（weighting）58dBSloping field SNR（unweighted）≥50dBAudio transmissionBalanced audio input rangeVmax=±15VUnbalanced audio input rangeVmax=3VppAudio channelStereo L/R audio channelStandardSMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299MInput range800±80(mV)EncodingAudio encoding modeMPEG1 Layer2CBER






City:	Beijing[CN]
