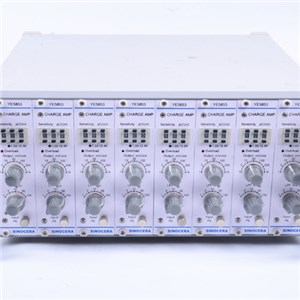

| Message: | Six Channel Charge Amplifier
Model YE5853
YE5853 charge amplifier is a kind of multi-channel modular charge amplifier, connecting with piezoelectric acceleration sensor as a test system, to measure the physical parameters, such as vibration, shock, be widely used in mechanical manufacture, power, aviation, navigation, construction, chemical explosion and other departments.This instrument adopts multi channel interpolation type structure, each instrument contain 1 ∽ 6 measurement channels, so for multipoint tests, it is a best economy choice.
Features:Rack-mounted multiple channel constructionSmall dimension with high integration designThree digit dial-in of transducer sensitivity (1~10pC/unit)Seven output gain settingsFive low-pass filter settingsLow noise and high accuracyWide frequency bandwidth (0.3 ~ 100kHz)Overload indicatorSpecifications:InputInput TypeSingle-endedInputCharge: ±105PC Maximum; Voltage: ±10VP MaximumExternal calibrationInput capacitance: 1000pf±0.5% ; Input voltage: 10Vpk Max.OutputOutput TypeSingle-endedOutput±10VP(DC-30kHz)/±100mATransfer CharacteristicsTransducer sensitivitySwitch Selectable from 1 to 10.99 PC/UnitGainSwitch Selectable 0.1; 0.3; 1; 3; 10; 30; 100; 3001000mV/pC with transducer capacitance 1nFAccuracy≤±1.5% with 20°C±2°, 45-75% RH, ≤±3% with 0°C-40°, 20-90% RH,Frequency responseLow pass filterSwitch selectable 1k, 3k, 10k, 30k, 100kHz (–3dB±1dB), 12dB/OctHigh pass filter0.3Hz (–3dB±1dB), –6dB/OctNoise≤5μV referred to input with maximum sensitivityHarmonic Distortion |
