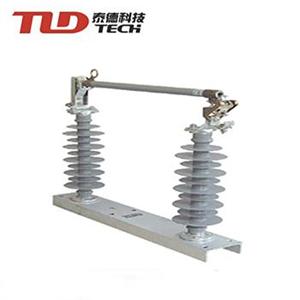

| Message: | In electrical distribution,Website:http://www.railwayinsulator.com, a fuse cutout or cut-out fuse is a combination of a fuse and a switch, used in primary overhead feeder lines and taps to protect distribution transformers from current surges and overloads. An overcurrent caused by a fault in the transformer or customer circuit will cause the fuse to melt, disconnecting the transformer from the line.
1.Using Environment Conditions:
1.1 Product Normal Using Conditions
1.1.1 Product normal temperature: -40℃~+40℃;
1.1.2 Altitude :≤1000M.
1.1.3 Earthquake intensity: ≤ 8 degree.
1.1.4 Max. Wind speed :≤ 35m/s.
1.2 Product is not suitable for following location:
1.2.1 Inflammation or explosive dangerous area.
1.2.2 Conducting electric,chemical gas as well as heavy pollution & salt fog area.
1.2.3 Intensive shake or shock area.
2.Mouting Method:
2.1 Mounting the fuse cutout on the bracket and fix it by bolt.
2.2 Setting the fuse cutout to the suitable position and fix it ,making sure it is safe and stable.
2.3 Connecting the conduct wire with upper and lower joint clamp by boltt ,it must be connected firmly.
3.Applied Standard:IEC 62217 IEC60255 IEC60282 |
