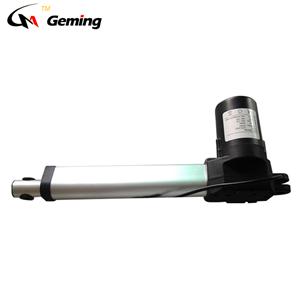

| Message: | HTB600-L HTB600-L linear actuator is designed for furniture ,nursing and hospital bed and so on. It can be used in various applications that is powerful and very quiet. Motor and gear of HTB600-L are protected by high -strength plastic shell.Features 1.Protection:IP542.Power:50W power motor3.Long lifetime4.Noise level:45dB5.Materials: Aluminum Alloy(Wear and corrosion resistance)Product Specifications Voltage 12V DC, 24V DC, 36V DC 48V DCStandard Stroke 100,150,200,250,300,350,400mmMaximum thrust 5000N（Pull） 6000N（Push）unloaded speed 7mm/s(6000N)Min Installation Size Stroke+150mm Colour BlackSafety Certification CEOperating Temperature range -25℃~+65℃The product is beautiful and compactBuilt-in limit switch (Not adjustable) Product Details LOAD AND SPEED CODE RATED LOAD SELF-LOCKING FORCE(Thrust condition) RATED LOAD CURRENT(A) Output speed THRUST PULL Idle RATED LOAD Motor Voltage(12V DC) A 6,000 5,000 7,500 1.9 5 5 B 4,000 3,000 3,500 2.2 8 8 Motor Voltage(24V DC) C 6,000 5,000 7,500 1.9 5 5 D 4,000 3,000 3,500 2.2 8 8 Product Images Electric linear actuator are widely used for the opening and closing of dampers, valves, gates, etc. in power, chemical, metallurgy, mining, light industry, transportation, shipping, and other departments, materials handling, and flow control. url:http://www.bamalinearactuator.com |
