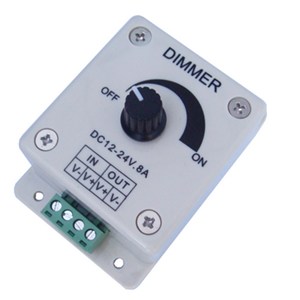

Message: | HX-T1Single Color DimmerSingle color dimmer can achieve stepless dimming. It adopts the knob control manner. According to actual needs,Website:http://www.hoionlighting.com, users can transfer the light to the appropriate brightness.Product Feature●Adopt the knob control manner●According to actual needs, users can transfer the light to the appropriate brightness.●Output one channel, the max current is 8A.●2-year warranty. Technical Parameters Working temperature-20-60℃Supply voltageDC5V, 12V~24V optional0utput1 channelExternal dimensionL89*W59*H35 mmPacking sizeL106*W64*H56 mmNet weight80gGross weight90gStatic power consumption<1WOutput current<8AOutput power5V:<40W,12V:<96W,24V:<192WInterface SpecificationsDirection for use ●Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;●Adopt rotary button, its function as follows: Rotate button to the right, brightness will be brighter, when you rotate it to the far right, the brightness is greatest.Rotate button to the left, brightness will be darker, when you rotate it to the far left, the light will be turned off.Product information for placing order Product nameItem numberSingle Color DimmerHX-T1 |
