| Message: | ALUMINUM SQUARE CEILING DIFFUSER

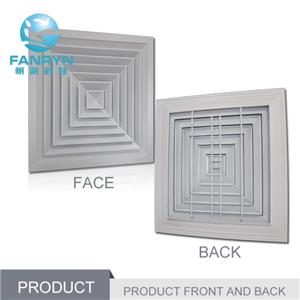

Product Introduction of the aluminum square ceiling diffuser
The frame & blades are made of extruded aluminum, powder-coated.
Louvered type core is removable and interchangeable, this tape of core will be better for installation and maintenance. For effective distribution providing directed air diffusion, this diffuser can allow for large volume flow rates and reduce the airflow velocity which makes whole room comfortable with only a little turbulence. It is mainly used in large space buildings such as airport, factory and exhibition center etc.
Product Parameter of the aluminum mounted square ceiling diffuser
SCD-A
Model: SCD-A
Material: aluminum alloy sheet
Material thickness: 1.0mm-1.2mm
Frame edge width: 33mm
Color: anodized alum.finish or powder coated RAL colors
MODEL NECK SIZE (mm)
A*A FACE SIZE(mm)
B*B HEIGHT(mm)
H
SCD-A 150*150 135*135 295*295 50
SCD-A 225*225 210*210 370*370 50
SCD-A 300*300 285*285 445*445 50
SCD-A 375*375 360*360 520*520 50
SCD-A 450*450 435*435 595*595 50
SCD-B
Model: SCD-B
Material: aluminum alloy sheet
Material thickness: 1.1mm
Frame edge width: 25mm and 33mm
Color: anodized alum.finish or powder coated RAL colors
MODEL NECK SIZE(mm)
A*A FACE SIZE(mm)
B*B HEIGHT(mm)
H
SCD-B 150*150 137*137 295*295 50
SCD-B 225*225 212*212 370*370 50
SCD-B 300*300 287*287 445*445 50
SCD-B 375*375 362*362 520*520 50
SCD-B 450*450 449*449 595*595 50
Product Feature and application of aluminum square ceiling diffuser
* Each layer of diffuser is mould pressed
* Removable core for easy installation and maintenance
* Opposed blades damper is optional
* Radial fan blade damper and Square to round adaptor is optional
* A rapid reduction of the temperature difference and airflow velocity url:http://www.fanryntech.com |
