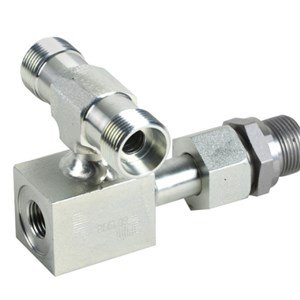

| Message: | High pressure tube fittings and adapters is leak-free fluid and gas power applications. it is metallic tube connections with 24 deg connectors, 37 deg flared connectors, o-ring face seal connectors. These fittings are for most high pressure hydraulic tubing system, vibration and impulse environments, high static pressure ratings.
High pressure fittings will make performance qualification test, including proof test, burst test,
cycile endurance impulse test, vibration test, overtightening test, re-use of test sample, leakage (gas) test.
Jiayuan offer all types of pressure tube fittings and adapters as follows:
DIN tube to tube high pressure tube fittings
DIN tube to tube swivel high pressure tube fittings
DIN fittings components for high pressure tube fittings
DIN banjo fittings for high pressure tube fittings
DIN locknut adjustable high pressure tube fittings
DIN tube to flange code 62 high pressure tube fittings
JIC tube to bulkhead, swivel, reducer, stud connection end fittings
ORFS tube to bulkhead, swivel, weld-on, braze-on, port, stud connection end fittings.
Connection type of 24 deg connectors:
MAXIMUM WORKING PRESSURE 80 MPA, 800 BAR, 11603 PSI (Dynamic Pressure)
Connection type of JIC 37 deg flare connector:
MAXIMUM WORKING PRESSURE 51MPA, 517 BAR, 7500 PSI (Dynamic Pressure)
Connection type of O-ring face seal connector:
MAXIMUM WORKING PRESSURE 63MPA, 634 BAR, 9200 PSI (Dynamic Pressure)
If you don’t find your product, please feel free to contact us. by jyray@72338.com url:https://www.jiayuanfitting.com |
