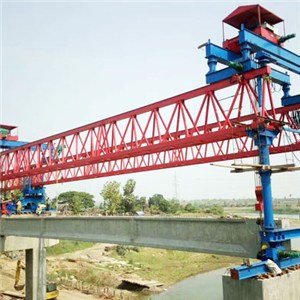

| Message: | The utility model is a new type of public-rail dual-purpose bridge erecting launcher machine independently developed by our company. The bridge erecting launcher machine is a steel structure prefabricated beam hoisting with wide operation range, excellent performance, convenient operation and structural safety. Erect equipment. Main structural features The main beam adopts a four-side truss structure, which is welded by steel and steel plates and has good wind resistance.
This product is suitable for building roads in mountainous areas, and can meet the requirements of large slope, small radius curved bridge, 45 degree inclined bridge and tunnel bridge erection. Similarly, it is more convenient in places with good plain construction conditions. This product is used in -20 ° C -40 ° C, no fire, no explosion and no corrosive media environment
Rated lifting capacity: 160t
Adapt to the bridge span: 40m
Working level: A3
Adapt to the cross slope: 2.5%
Adapt to the vertical slope: 5%
Adaptation angle: 45°
Front leg adjustment length: 1.5m
Machine power: 75kw
Lifting height: 5.5m
Lifting speed: 1m/min
Cart longitudinal speed: 4.25m/min
Trolley traverse speed: 1.57m/min
Small planning traverse distance: ± 2.25m
Longitudinal speed of the cart: 4.25m/min
Cart traverse speed: 1.57m/min url:http://www.dowell-cranes.com |
