| Message: | Application & scope of use
This series of products is a general machinery for tea processing operations, suitable for green tea, black tea, oolong tea and other famous tea processing, exquisite drying operations. This product is used in continuous drying of famous high grade teas. It is also suitable for continuous drying of flaky,striped and granular Chinese herbal medicine,grain,aquatic products,fodder and other farm by-products. The machine applies to drying process of Wu Yi Rock tea as well.
Structure

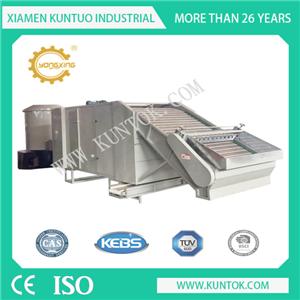

The machine is composed of a drying chamber, a variable speed transmission device and a feeding device, and it is used by a composite sleeve of a heating and auxiliary unit in an Air supply unit. Drying room wall plate using mezzanine, good insulation performance, before and after there are ready maintenance, observation of the door. Air supply device mainly has the fan, the air supply pipe fittings and contains the regulating valve to adjust the bellows and so on, the device depends on the matching heating sub-machine, the difference between the positive pressure type and the negative pressure type.
Product Parameters:
Model 6CHB-16
Motor power kw 1.1
Outline dimension of chamber 6375*1524*2000
Outline dimension of hot-blast stove
(diameter * height) mm 1580*2410
Water evaporation capacity kg(m.h) ≥6.5
Effective tea-spreading area ㎡ 16
Drying-plate type Galvanized ,chain plate type
Number of drying-plate layers 6
Heating source coal. electric
(customized)
Matched metal hot air stove RFL-100 coal-fired
Total weight kg 1850(main machine)
1000(stove)
working principle
According to the principle of heat transfer and temperature transfer, the heated dry and hot air is sent into the flood box and penetrating into the upper part of the conveyor, and the wet material spread on the baking plate for hot and humid exchange, so that the water is fully vaporized and evaporated, also the wet materials ......url:http://www.kuntok.com |
