| Message: | Quick details:
CW
Water cooled
Micro channel
Special design for laser stack
Data sheet:
Item No.: WC808SB100

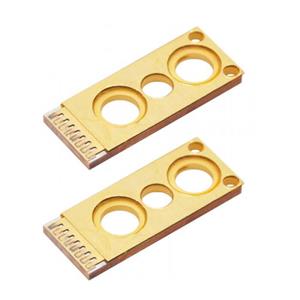

Item Name: 100W 808nm CW Water Cooled Single Bar Diode Laser
Optical
Center Wavelength 808nm
Wavelength Tolerance ±5nm
Output Power 100W
Spectral Width FWHM ≤3nm
Spectral Width FW90%E ≤6nm
Fast Axis Divergence(FWHM) 40Deg
Slow Axis Divergence (FWHM) 10Deg
Polarization Mode TM
Slope Efficiency ≥1.0W/A
Electrical
Operating Current Iop ≤110A
Threshold Current Ith ≤20A
Operating Voltage Vop ≤2V
Power Conversion Efficiency ≥55%
Thermal
Operating Temperature 22~28℃
Storage Temperature 0-55℃
Wavelength Temperature Coefficient ～0.28nm/℃ url:http://www.brandnewdiode.com |
