| Message: | Overview

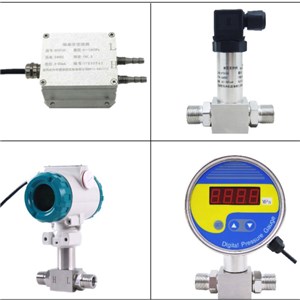

4-20mA Mirco Diffused Silicon Differential Pressure Transmitter adopts stainless steel housing, the two pressure interfaces can be connected on the measured pipeline or impulse line, suitable for measuring differential pressure of gas and liquid.
Main Features
1. Industrial protection grade
2. Fully stainless steel structure
3. 4-20mA, RS485, 0-5V/10V output
Specification
STATIC PRESSURE RANGE -0.1~3.5 MPa
ACCURACY 0.5%F.S
STABILITY ≤0.1%/year
POWER SUPPLY 12-30V DC
WORK TEMPERATURE -30°C~80°C
OVERLOAD CAPACITY 150%F.S
MEDIUM TEMPERATURE -40°C~85°C
PROTECTION LEVEL/IP RATING IP 65
MEDIA Gas/Liquid/Oil /Diving
Sensor Diffused silicon url:https://www.mrcsensor.com |
