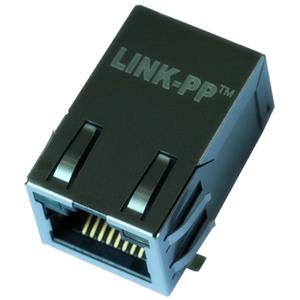

| Message: | Part Number: J3011G21DNL
Application-Lan: ETHERNET(NoN PoE)
AutomDX: YES
Bst Circuit: YES
Configuration RX: T,C
Configuration TX: T,C
Contact Mating Area Plating: GOLD 6u"/15u"/30u"
Cores per Port: 4
Diodes: NO DIODES
LED Option: GREEN/YELLOW
Latch: TAB UP
Number of Ports: 1X1
PCB: FR4
PCB Mount Angle: SIDE ENTRY
PCB Retaining Post: T POST
Package Height (Inches): 0.536
Package Height (mm): 13.61
Package Length (Inches): 1.00
Package Length (mm): 25.40
Package Width (Inches): 0.634
Package Width (mm): 16.10
Pin Type: SURFACE MOUNT
RoHS Compliant: YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search: YES
Shield EMI Tabs: WITH
Speed: 10/100 BASE-T
Temperature: - 40 TO + 85℃
Turns Ratio RX: 1CT:1CT
Turns Ratio TX: 1CT:1CT
