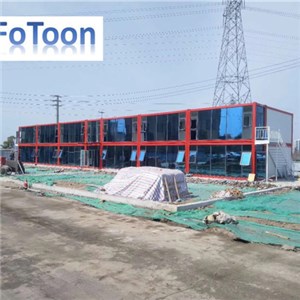

| Message: | The project is one of our Prefabricated Foldable Worker Accommodation Container Home, pls check following info:
WALL & ROOF
1 Wall panel Wall panel 60 mm thickness EPS sandwich panel with 0.5mm thickness white-grey color steel skin, 16kg/m3 density insulation
Interior partition wall panel 60 mm thickness EPS sandwich panel with 0.5mm thickness white-grey color steel skin, 16kg/m3 density insulation
Toilet partition board Melamine board with accessaries.
2 Roof Interior top board 60 mm thickness EPS sandwich panel with 0.5mm thickness white-grey color steel skin, 16kg/m3 density insulation
Insulation part in top 75mm Rock Wool Insulation
Exterior top board 0.5mm thickness color steel
Roof water treatment 50mm Dia PVC pipe for roof water system.
STEEL FRAME
3 Steel frame Column 3.0mm Galvanized steel bending + painting finishing
Foundation main beam 3.0mm steel bending main beam + painting finishing
Foundation secondary beam 80x40mm steel rectangular tube + painting finishing
Roof framework 3.0mm steel bending main beam + painting finishing
Roof secondary beam 40x40mm steel section + painting finishing
Corner fitting special for container house,ISO standard
Skirting line for decorate wall edged PVC skirting line
FLOOR
4 Floor Floor base 18mm Fiber cement board
Floor finishing 1.8mm PVC floor
5 Door & Window Door 840x2040mm white color security door with stainless steel lock
window wrap page 900x1200mm & 600x600 white color Aluminum Alloy Sliding windows with double glazed glass 5/9/5mm & fly screen.
Window wrap page aluminum alloy
ACCESSARIES
6 Accessories Accessories bolt, screw, glass glue, connecting part, basic tools for assembling
Electrical material components electric distribution board,single phase circuit breaker , sockets, switches, lights, wire under customers' country standard
Facilities Shower, towel rack; toilet, toilet paper holder; urinals; hand basin, soap holde......url:http://www.ftprefabhouse.com |
