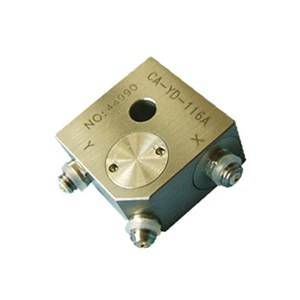

| Message: | Triaxial Accelerometer: Highlight:
The main sensing element Piezoelectric Ceramics are made by ourselves with good stability and consistency.Features:
l Triaxial output, simultaneous X,Y,Z vibration measurements
l Mounting by a middle through hole
l Passive, direct piezoelectric effect
ModelCA-YD-3141CA-YD-3116Sensitivity (20±5℃)10 pC/g 20 pC/gMeasurement Range(pk)2000g1000 gMax Transverse Sensitivity≤5 ％≤5 ％Frequency Response（±5%）1～ 6,000 Hz1～ 6,000 HzMounting Resonant Frequency10,000 Hz20,000 HzOperating Temp. Range-40～+150 ℃-40～+150 ℃Transient Temperature Response8 mg/℃(0.3Hz)4 mg/℃(0.3Hz)Magnetic Sensitivity0.5 g/T2 g/TBase Strain Sensitivity4 mg/με0.2 mg/μεCase Isolation＞109 Ω＞109 ΩCapacitance～1500 pF1500 pFMounting Φ5 through hole, 2-M5Φ5 through hole, 2-M5Sensing ElementPiezoelectric CeramicsPiezoelectric CeramicsCase MaterialStainless steelStainless steelOutputX、Y、Z Triaxial L5X、Y、Z Triaxial LWeight17 g60 gRecommend related instruments: On charger amplifier you can choose our recommend item YE5853 On data acquisition: we recommend our item YE6267 YE6269Triaxial Accelerometer: CE Certification: url:http://www.china-yec.net |
