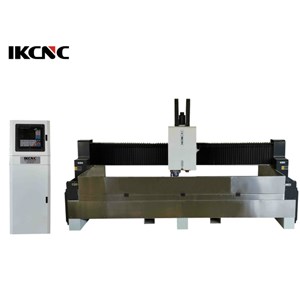

3015 quartz countertop cnc machining center is suitable for cabinets artificial stone, quartz stone countertops and sink, tea traycarving European style edging, and other heterosexual stone, ceramics, glassand ceramic stone drilling, sanding, edge down, engraving.Quartz countertop machining center can also be used for processing washing pool and European background wall.To process high-quality products,this model is a necessary equipment for the well-known brand who process counter-top.It’s high efficiency and low cost.For example, it just takes 30 minutes to auto-processing 2.44*0.75m quartz stone board. It can do many process such as polishing for back splash ,former anomalous edge, cutting and polishing hole through the manualc tools changing.
3015-quartz-countertop-machining-center
Technical Parameters
X Y Z Axis working area
3000*1500*500mm
Table size
2310*3550mm
Positioning accuracy
±0.03/300mm
Reposition positioning accuracy
±0.03/300mm
Machine Frame
8/10mm Steel tube welded structure
Drive system X,Y axis
30 Taiwan HIWIN guide rail&pinion
Drive system Z axis
Ball screw
Max power consumption
20-28.0KW
Max traverse speed
25000mm/min
Max working speed
15000mm/min
Spindle
7.5KW Constant Water Spindle
Spindle speed
25000rmp
Work motor
Germany Servo motor and driver
Working voltage
AC380V
Command language
CAD
X-Y resolution
0.03/300mm
Product details
3015-quartz-countertop-machining-center
3
IKCNC 1325
IKCNC
STONE-CNC-
1) Machine body: Heavy duty big square tube steel bed structure
2) Others: automatic Lubrication system
3) Transmitting system: XY axis is rack and pinion,Z axis TBI Ball Screw
4) Guide rail: XYZ all from Famous Taiwan Hiwin Line 30mm Square guide way
5) Spindle: ATC 5.5KW/7.5KW water cooled spindle
6) Inverter: Fuling 7.5kw inverter
7) Motor: Servo motors and drivers
8) Controller system: Nc ......url:http://www.ikcnc-en.com |
