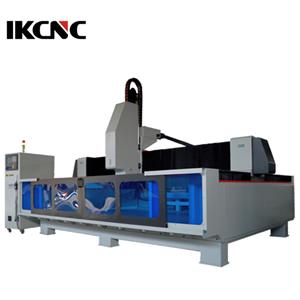

| Message: | Introduction of Quartz stone CNC cutting machine Machining ceter
Quartz stone CNC cutting machine Machining ceter is widely used in quartz cabinet countertops processing industry, large stone panel engraving industry,craft processing and building material industry. All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability. Heavy duty steel wall structure, keep machine with very good stability. Adopt disk/linear type automatic tool changer with 8 tools magazine, spindle change tools automatically,no need manual work. High z axis design, suitable for large scale three dimensional surfaces machining. With a big rotary device, can process different kinds of Roman side, European side, cutting, edging and polishing of the basin hole, forming and polishing of the back arc water blocking.
Automatic countertop processing center
Specification of Quartz stone CNC cutting machine Machining ceter
Model
IK-3015 ATC
X/Y/Z Axis working size
3000*1500*350mm
Working table
Aluminum profile with T slot and water tank
X/Y/Z Axis transmission
X/Y Axis helical Gear and rack, Z Axis Ball screw
Spindle power
Italy spindle 12KW(Taiwan 7.5KW ATC spindle optional)
Tool holder, Collet/Blade
BT40, diameter ER32 (4-20mm)
Driver motor
Servo motor
Control system
Weihong system optional
Gross weight
3.5T
Vauum system
vauum pump and vauum pad option
Features of Quartz stone CNC cutting machine Machining ceter
1
1-1404
IK-STONE-MACHINING-
IK-countertop-machining-center-cutting-stone
Lathe Bed: Industrial design plate welding, 600 degree high temperature quenching processing
Machine Parts: Industrial aluminum casting structure
Working Table: Full aluminum
Drive Motor/System: Japan YASKAWA large power bus servo
Spindle: Italy EMA 11.0KW air-cooling ATC spindle, 2000-12000rpm
Tool Magazine: 18 straight line tools, ISO 40 tool ......url:http://www.ikcnc-en.com |
