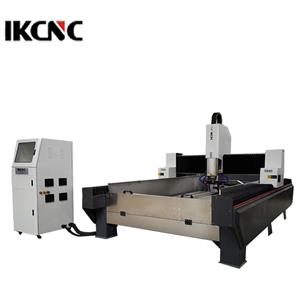

Stone CNC router engraving machine 1325 for granite adopts Taiwan HIWIN Square rails, double-row four columns slide block, high precision, huge bearing capacity, good moving stability and tools falling accuracy. Whole mahine welded with thickness steel tubes, not easy to be deformed. working table backed with steel plate, bearing capacity more than 1ton. Constant power spindle motr, big cutting intensity and high efficiency. Dust proof and wate pcroof design protects the transmission components. Equipped with water tank and automatic water cooling systemThis stone machine accessories are made of internationally renowned brands such as motor and driver to ensure the machine has a long service life to the greatest extent, has always been the ideal choice for the stone processing industry.
single heads stone CNC Router
Technical parameter
Size
4.3x2.2x1.8m
Voltage
380V
Working Size
1300x2500x300mm
XYZ Rails
TAIWAN Square guide 20mm
Spindle
5.5kw Water Cooling 18000rpm
Table
Aluminum table with stainless steel water tank
Motor&Drive
YAKO 2811 driver and stepper motor
Inverter
7.5kw Delta
Control
A11 DSP
Software
Ucancam V11
Features and details of 1325 stone CNC router
Features
1. Steel tube lathe bed,low center of gravity,strong bearing capacity,not easy to deformation,stable and reliable operation.
2. Adopt Ncstudio control system ,through computer operation,easy and simple to operate.DSP handle offline control is optional.
3. Adopt Taiwan linear guide rail. the bearing of the lead guide rail is face to face, the long time use precision is high.
4.Strong compatibility: compatible various CAD/CAM software like Type3/artcam/castmate/proe/Corelerow/Wentai.
5.Adopt High power frequency changing water cooled spindle,providing excellent cooling effect when carving flinty materials,effectively protect spindle when continuous working for a long time.
stone-CNC-router
