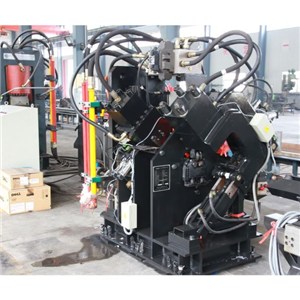

| Message: | JX0808 CNC angle punching, marking and shearing production lineProduct use: Based on the needs of the modern of the tower processing industry, according to customer requirements. Specail designed of an angle steel processing production line, mainly for angle of 30x3-75x8mm fast processing CNC equipment.Product Features1. JX0808 angle production line table, forged with high hardness, modulation processing, and the table long-term use no surface scratches, ensure the accuracy of machine to extend the equipment life.2. Assembly accuracy, the components in strict accordance with the process requirements accuracy requirements are stringent. 3. Processing range expand can complete Min.30X30X3mm angles.4. Hydraulic part with Italian control valves (pressure rating 30MPA), the highest configuration in the industry similar products (some companies use Taiwan valve, pressure rating 16MPA) equipment service life and reliability.Product ParameterNo.DescriptionUnitParameters1Angle sizemm30X30X3-75X75X82Max. Punching dia.mm263Max.Punching nominal forceKN4004Max. Marking nominal forceKN6005Marking groups & characters dimensionGroup/mm4Groups 14×10×196Number of punching unitpc27The number of punch for each unitpc28Shearing nominal forceKN600(Single shearing)9Adjustment range of stadia.mm10-7010Max. Infeed angle sizemm1200011Max. Outfeed workpiece sizemm1000012CNC axes No.Pc313Machining accuracy Meet GB / T 2694-2010 standardOther:No. 1Warranty2Engineer oversea service3Installation & TrainingCALL FOR ACTION url:http://www.supertimecncmachines.com |
