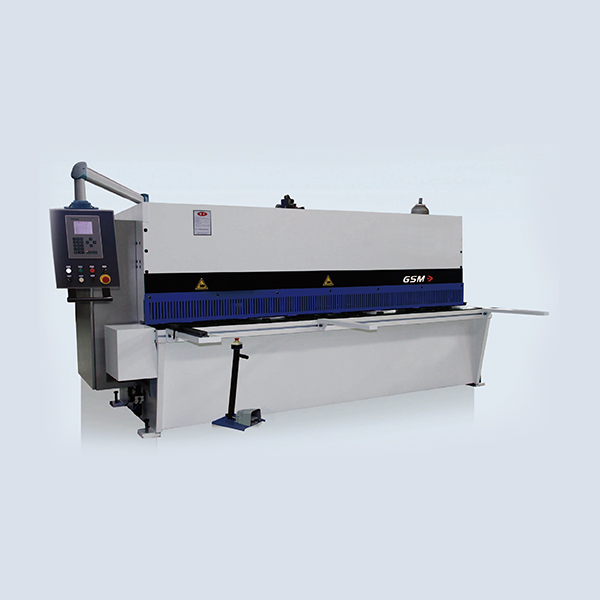

| Message: | machine frame and cutter bar are designed with extremely solid, carefully machined weldment structures to withstand highest loads
The frame is produced in a state-of-the-art semi-automatic welding process and treated for thermal stress relief
The proven swing beam design allows small knife angles for maximum cut quality and minimum distortion at the workpiece
Kerf setting can be accomplished manually via a centrally located operator hand-wheel
Hydraulic components by Bosch / Rexroth with renown reliability and function
hydraulically controlled hold-downs ensure evenly distributed down-pressure over the entire cut length
E-21 S Estun NC positioning control of rear stop for quick sand safe work and high accuracy
Rear stop precision is ensured by HIWIN preloaded ball screws
Cut line lighting ensures exact alignment by shadow graph
infinitely adjustable cut length saves valuable time when producing small parts
Main drive motor for hydraulic pump by Siemens
Reliable and efficient electrical components by Schneider Electric
Upper knife with 2 cutting edges, lower knife with 4 cutting edges (6CrW2Si)
Performance specs listed in the table (Specifications) apply to hot-rolled ST42 sheet steel
An optional sheet hold-up device ensures exact positioning of the plate at the rear stop when using thin materials
|
