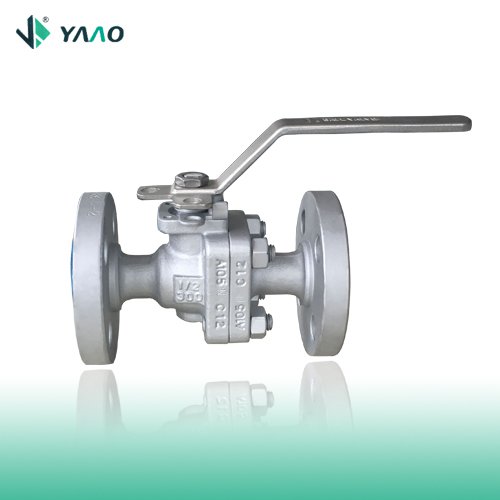

| Message: | API 6D Forged Ball Valve Manufacturer: API 6D Forged Ball Valve, 1/2-4 Inch, Class 150-2500 LB, Flanged, ASTM A105, API 608, ASME B16.34, DIN 3357.
Design Specifications:
Body Material: ASTM A105.
Size: From NPS 1/2 to NPS 4.
CLASS: From ASME 150 to ASME 2500LB.
Design: API 6D, API 608, ASME B16.34, DIN 3357.
Wall Thickness: ASME B16.34.
Pressure-temperature Rating: ASME B16.34.
Face-to-face Dimensions for Flanged Valves: ASME B16.10-API 6D.
Flange Design: ASME B16.5.
Socket Weld Ends to ASME B16.11.
Screwed Ends (NPT) to ASME B1.20.1- ASME B16.11.
Butt Welding Ends: ASME B16.25
Pressure Testing: API 598 |
