| Message: | X-ray intelligent mineral sorting machine uses X-ray to transmit scanning of the selected ore, obtains the atomic number data of the minerals, processes the data by means of convolutional neural network and other means, establishes an identification model, identifies the ore and miscellaneous stones, and then drives the actuator to sort the ore. It is also possible to add visible or infrared cameras for composite identification according to the different characteristics of the ore to further improve the sorting accuracy

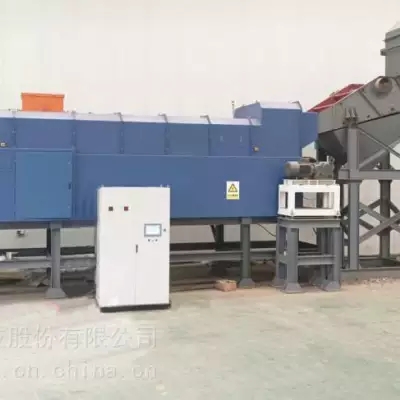

Mingde MTX series X-ray intelligent mineral sorter can handle ore size from 300mm to 10mm. For example , According to the mineral density of 1.4g/cm³, the processing capacity of one unit can reach up to 380t/hour.
The specific selection table is as follows
+50~-300mm大颗粒（按照矿物密度1.4g/ cm³计算）
+50~-300mm large particle (calculated with density 1.4g/ cm³)
技术参数
Technical Parameters MTX12-300 MTX14-300 MTX16-300 MTX18-300 MTX20-300 MTX24-300 MTX28-300 MTX32-300 MTX36-300 MTX40-300
履带布料器宽度（mm）
Width of track drapery(mm) 1200 1400 1600 1800 2000 2400 2800 3200 3600 4000
处理能力（T/H）
DealCapacity
(T/H) 110 130 150 170 190 230 260 300 340 380
理论配置厂型（Mt/a）
Theoretical configuration（Mt/a） 1.8-2.3 2.3-2.7 2.7-3.1 3.1-3.6 3.6-4.0 4.0-4.8 4.8-5.5 5.5-6.5 6.5-7.0 7.0-8.0
实际处理能力要根据矿物密度进行具体计算
The actual capacity should be calculated accoring to mineral density.
|
