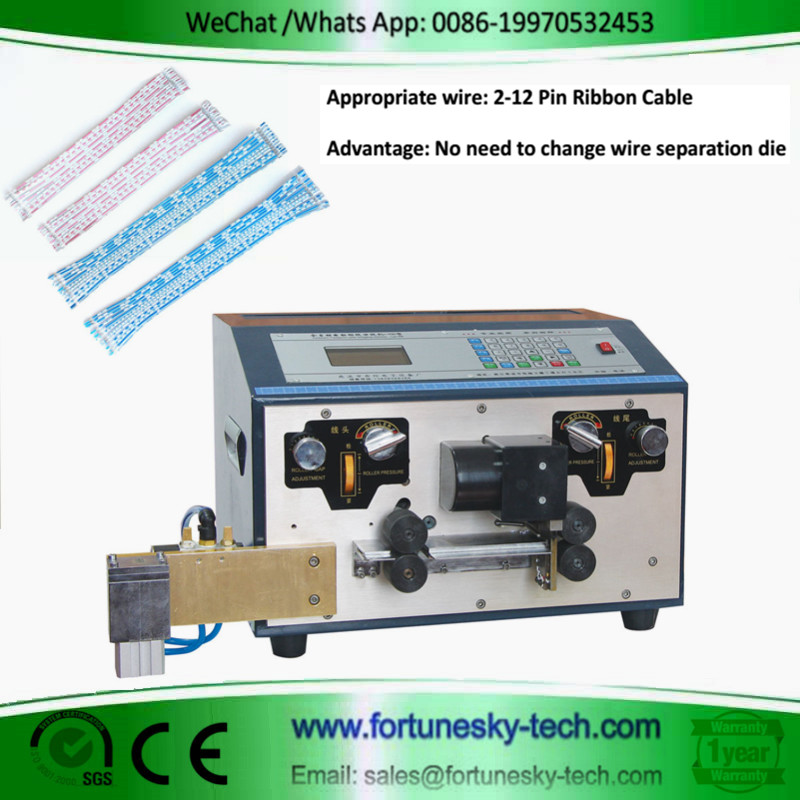

| Message: | This automatic flat ribbon cable strip cut split machine which is an fully automatic ribbon cable separator cutter stripper that cut & strip & split-to-length on ribbon cable, both-ends stripping, split ribbon cable into individual conductors, change parameters to split different length, no need to change conductor splitter, easy and unmanned operation.
Technical Parameters
Mode BJ-900+T
Function Flat ribbon cable cutting, both-ends stripping and splitting, intermediate stripping
Applicable Wire Range 2-12 Pin/Way Flat Ribbon Cable
Processing Speed 2000-4000 pieces per hour (decide by wire material)
Cutting Length 0.1mm-99999.9mm
Intermediate stripping nos. 13 strips
Stripping Length Stripping wire head: 0.1-25mm Stripping wire tail:0.1-20mm
Accuracy of entry & outlet wire motor Mute hybrid stepping motor 0.1mm per step
Remark Function Auto-entry wire, Auto-outlet wire, timing start
Driving Mode Six wheels driven
Dimension 510X340X340MM
Net Weight 40KG
Cutter Material Import tungsten steel/Highspeed steel
Feature:
1. High speed: It can cut 100~120 cut per minute. (50mm long)
2. Accuracy: Cut-length is accurate. Material is sent by a stepping motor.
3. Cutting type: Cutting is neat due to using a cold cutter which is durable.
4. Automatic operation: It works automatically only by setting length and quantity.
5. Automatic stopper: It stops automatically if materials run out during operation.
6. Memory: Set-length, set-qty & set-speed are not erased even if power off & on.
7. Application: Sleeve, rubber/plastic tube, small wire, sheet, film, etc.
8. High speed, high accuracy, designed for cutting non-adhesive materials.
Description:
Model: 100 (can be custom for customer)
Voltage: 220v /110v ; 60HZ/50HZ
Power: 250 W
Cutting length: 0.1 – 10000mm
Blade width: 100mm
Weight: 28 KG
Dimension: L420xW350xH390mm
Cut speed: 120cut/ minute (50mm) |
