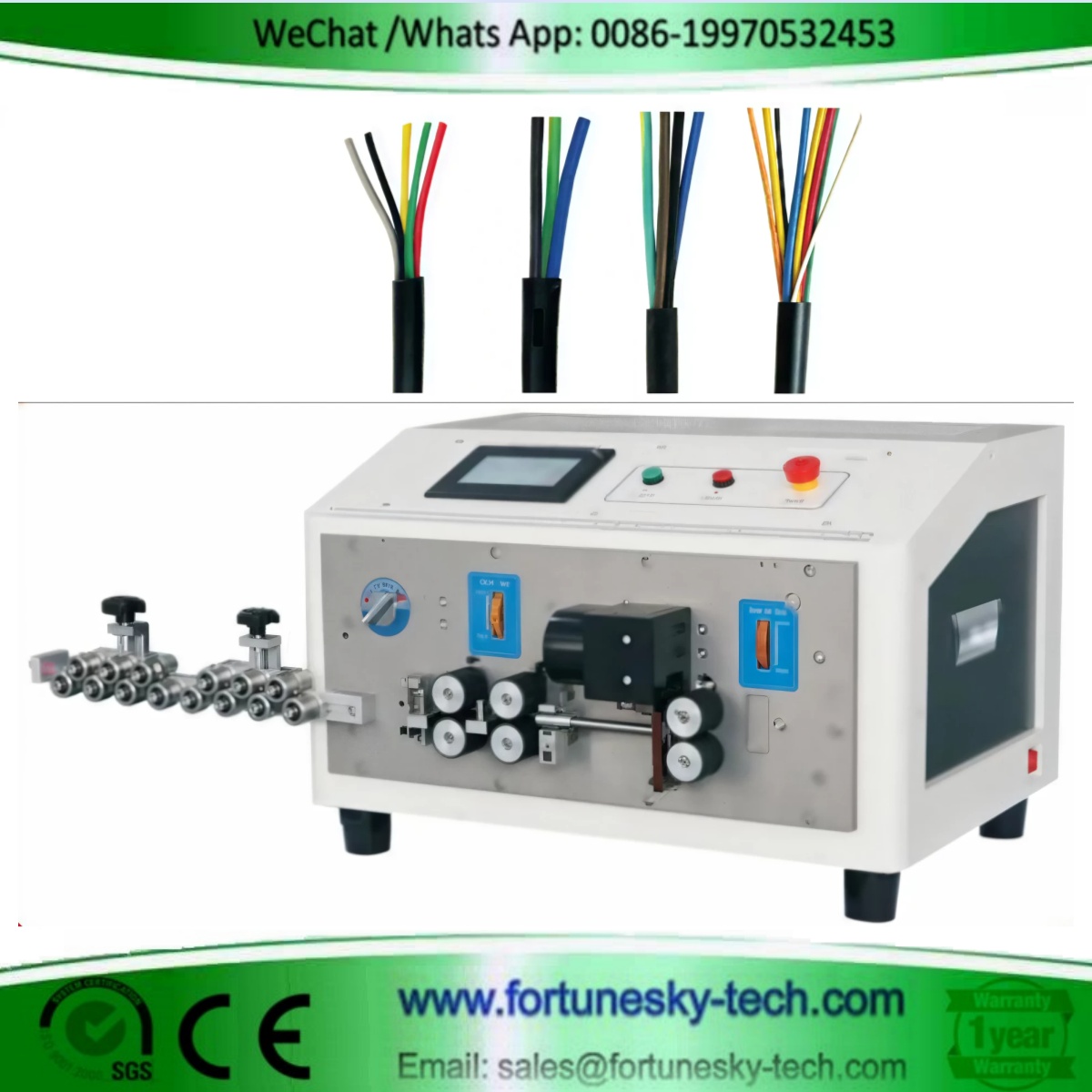

| Message: | This machine is designed for cutting the total length and stripping the outer jacket at one end or both ends of multicore round sheathed cables such as power plug wires sensor sheathed wires and data cables
Full touch screen computer numerical control debugging digital operation simple and easy to understand
Adopts 6 wheels for simultaneous wire feeding making the wire feeding length and stripping length more precise and effective
This model can strip both the outer jacket and the inner cores of flat sheathed cables simultaneously It can also strip the outer jacket of round sheathed cables If you need to strip both the outer jacket and inner cores of a round sheathed cable at the same time please choose our FY880C Automatic Multicore Cable Cutting Sheath Cores Stripping Machine
Technical Parameters
Parameter Name Value
Equipment Model FY906
Input Power AC220V 5060HZ
Machine Dimensions L560xW465xH350mm
Machine Weight 40kg
Total Power 880W
Rated Power 400W
Working Air Pressure 0508MPa
Appropriate Cable Diameter no more than 10mm
Cutting Length 0019999999mm
Head Stripping Length 00110000mm
Tail Stripping Length 0017000mm
Blade Material Imported highspeed steel
Stripping Accuracy Silent hybrid stepping motor 001mm
ProductivityHour Approx 15002500 pieces
Program Storage Serial number 0099
Auxiliary Functions Automatic wire feedingunfeeding timed start jog adjustment
Display Method 43inch color screen display |
