| Message: | Features Description
This machine is designed for small electronic wires and PVC plastic wires performing wire cutting singleend stripping and twisting doubleend stripping and twisting and other operations
Full touchscreen computer numerical control debugging digital operation simple and easy to understand
Unique rounded and precise design exquisite and compact easy to place
Automatic wire feedingoutfeeding timed start jog adjustment switch
Onekey correction function for wire length error
Technical Parameters
Parameter Name Value

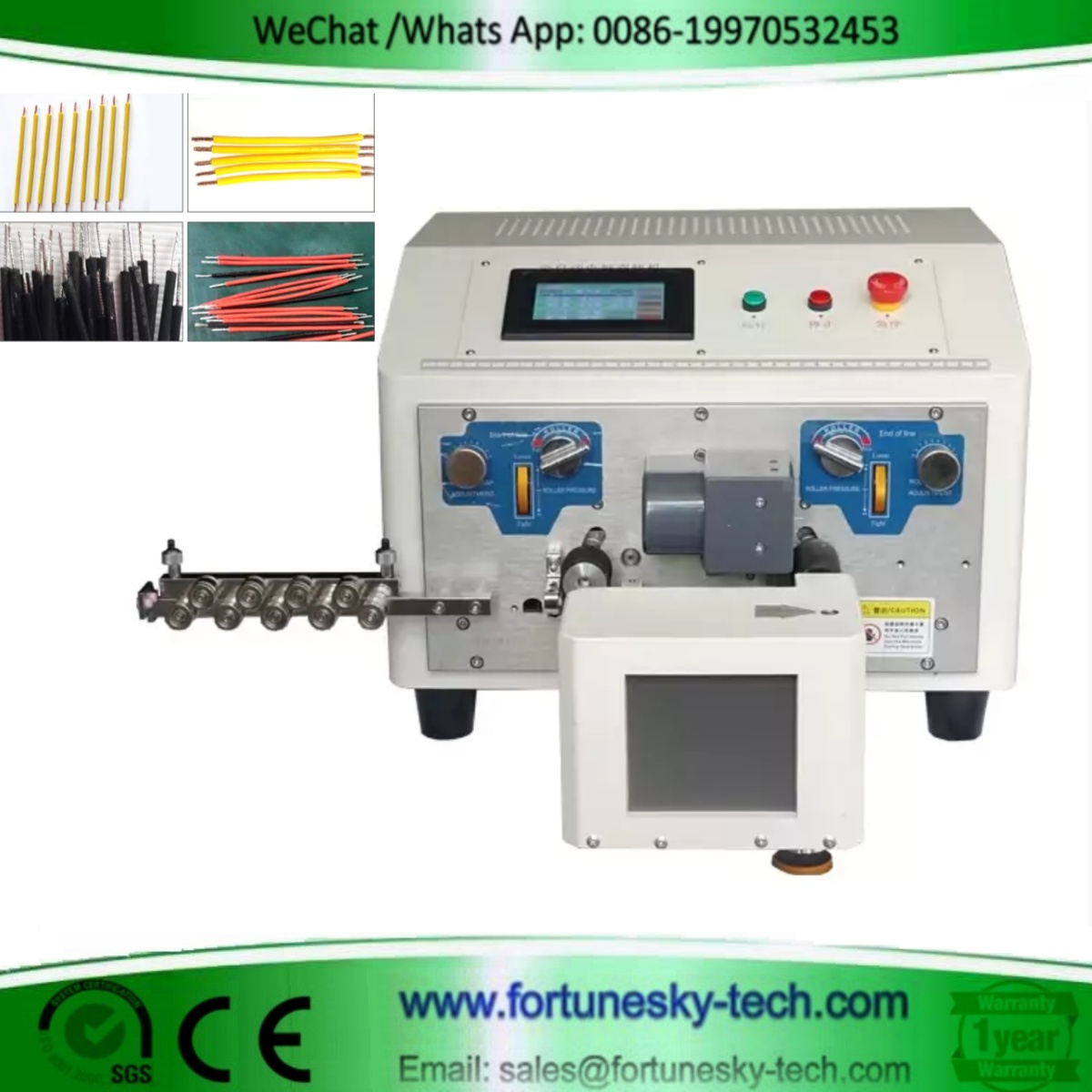

Equipment Name Fully Automatic Computer Wire Stripping Machine
Single Wire Processing
Equipment Model FY806N
Input Power AC220V 5060HZ
Machine Dimensions L470xW700xH350mm
Machine Weight 45kg
Total Power 880W
Rated Power 400W
Wire Core Crosssection 0210 sqmm
Cutting Length 0019999999mm
Stripping Length Head 0013000mm
Stripping Length Tail 0013000mm
Middle Stripping Sections 16 sections customizable
Blade Material Tungsten Steel
Stripping Accuracy Silent Hybrid Stepper Motor 001mm
CapacityHour 501000mm Approximately 20004500 pcshour
Program Storage Serial No 0099
Auxiliary Functions Automatic Wire FeedingOutfeeding Timed Start Jog Adjustment
Display Method 43inch Color Screen |
