| Message: | Features Description
This machine is designed with a rubbing strip twisting method making the wire twist tighter and suitable for a wider range of wires
Full touch screen computer numerical control debugging digital operation simple and easy to understand
Unique rounded and precise design exquisite and compact easy to place
Automatic wire feedingunfeeding timed start and jog adjustment switch
Onekey correction function for wire length error
This model machine can be customized for cutting stripping twisting splitting speaker wire
Technical Parameters
Parameter Name Value

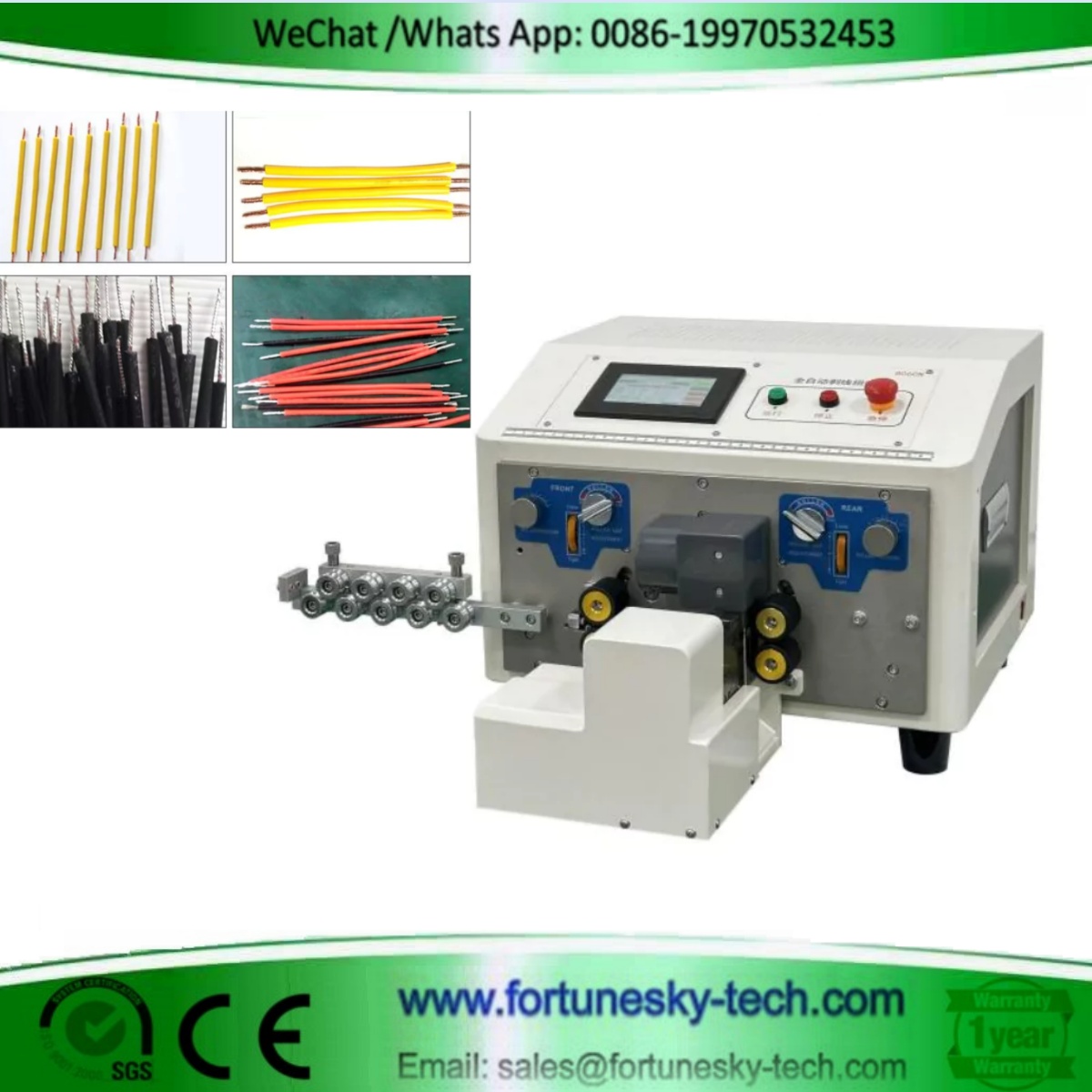

Equipment Name Automatic Wire Cutting Stripping and Twisting Machine
Thick Wire Type
Equipment Model FY806CN
Input Power AC 220V 5060HZ 110V customizable
Machine Dimensions L470xW780xH350mm
Machine Weight 60kg
Total Power 880W
Rated Power 400W
Wire Core Size 0140 square mm AWG2812
Cutting Length 0019999999 mm
Stripping Length Head 0013000 mm
Stripping Length Tail 0013000 mm
Middle Stripping Sections 16 sections customizable
Blade Material Tungsten steel
Stripping Accuracy Silent hybrid stepping motor 001mm
ProductivityHour Approximately 20004500 pieces
Program Storage Serial number 0099
Auxiliary Functions Automatic wire feedingunfeeding timed start jog adjustment
Display Method 43inch color screen display |
