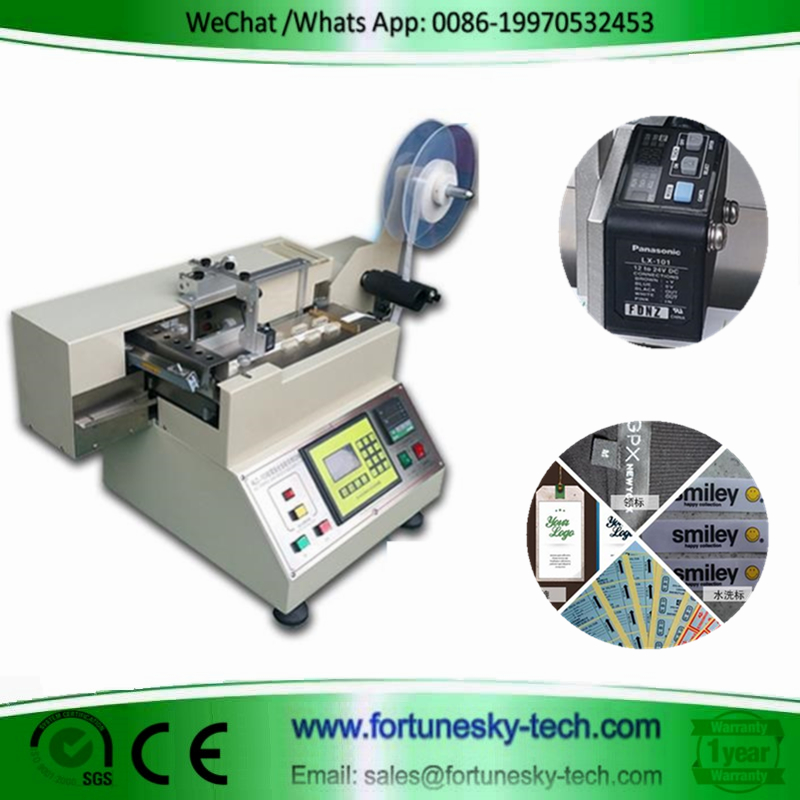

| Message: | Ultra-high-speed Hot & Cold Color Trace Position Label Cutting Machine
Cut material:
Logo, trademark, size label,swing tag, washing label, washed cloth, care label, wash care label, battery casing, etc.
Performance characteristics
1, suitable for cutting all kinds of printed label, woven label, pvc trademark, stickers trademark, after heating can be hot cut;
2, imported from Japan SUNX,high precision,simple operation;
3, the independent development of the control system with a reasonable clever structure design, the speed of up to 580 cuts per min;
4, with waste discharge function, to eliminate the impact of waste label and make machine continuous working;
5, eliminate static electricity devices can be ruled out the effect of static electricity in high efficiency shearing process, sliced and natural stack;
6, cutter speed and feeding speed adjustable, complete control of the machine’s high and low speed;
7, high-speed precision feeding motor, fixed length cutting length even in 2.5m can reach 0. 3mm accuracy;
8, the control system has three working modes, debugging mode, positioning mode, fixed length mode and waste discharge mode, a variety of modes to meet a variety of materials, different cutting requirements.
9, in the (English) large-screen LCD display, the parameters at a glance, simple and convenient.
Parameters:
Power Supply 220v/50HZ
Cutting Length 1mm-10m
Cutting Width 0-100mm
Net Weight 43kg
Cutter Material High-speed Steel D2
Quickest Feeding Speed 580 cuts per min
Dimension 800L x460w x 600H mm
Power 1500w
Feeding Wheel Material Stainless Steel
Automatic Stacking Device Yes
Eliminate static electricity function Yes
Eliminate waste function Yes |
