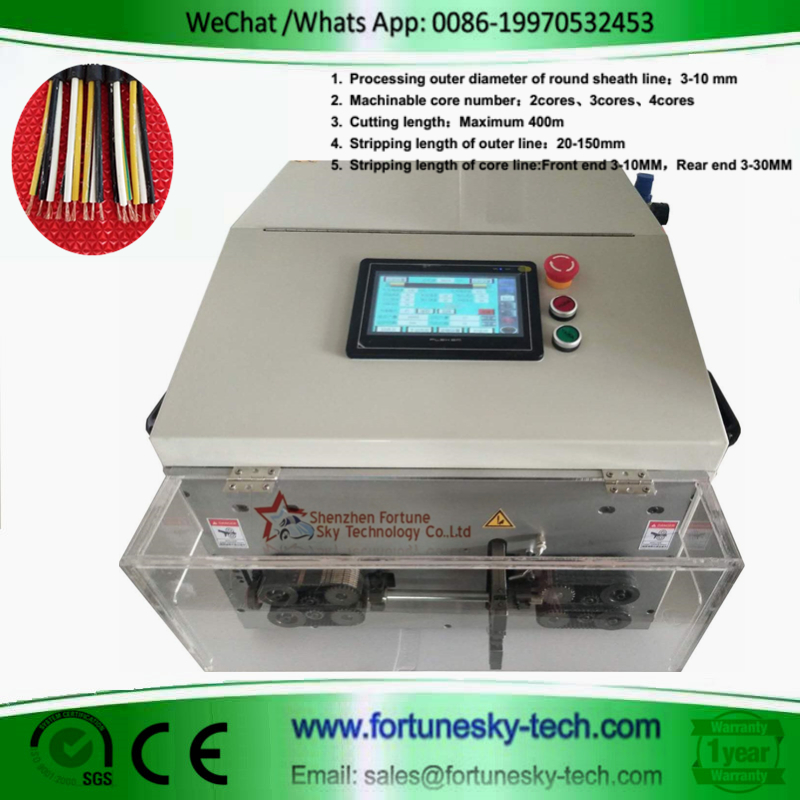

| Message: | This H05VV-F jacket core stripper cutter automatically cut and strip outer jacket and pvc insulations of h05vv-f 2/3/4/5 core cable, not hurt core copper wires,100 different programs can be saved for calling anytime. Easy operation, unmanned and good performance.
Technical parameter：
Model：SWT508-YHT2
Machine dimension：700mm×660mm×430mm
Weight：85KG
Power：850W
Voltage：220V/110V 50/60HZ
Operation interface：English/Chinese（Using 7 Inch Touch Screen）
Processing outer diameter of round sheath line：3-10 mm
Machinable core number：2cores, 3cores, 4cores, 5 cores
Gas pressure：0.3-0.6Mpa
Maximum diameter of conduit：Diameter 11
Peeling accuracy：±0.2mm
Cutting length：Maximum 400m
Stripping length of outer line：20-150mm
Stripping length of core line:Front end 3-10MM，Rear end 3-30MM
Material of cutting tools：4 pieces of knife are made of high speed steel.
Productivity(200mm Length per unit)：650pcs/hour
Drive system：8 rollers Electric machinery ball screw driver
If your wire is flat sheathed cable, you can choose our fully automatic sheath cable wire stripping machine.
|
