| Message: | Features Description
1 Selfdeveloped motion control board singlechip microcomputer
2 Fulltouch 43inch LCD screen
3 Lownoise hybrid subdivision driver
4 Unique sleek and precision design
Technical Parameters

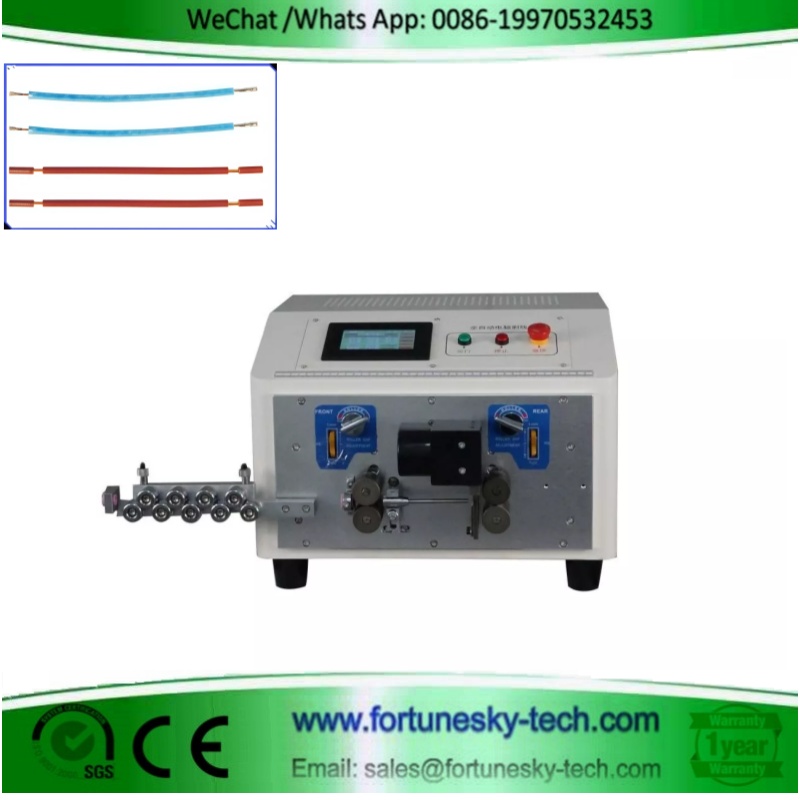

Model FY808 Function Wire cutting doubleend stripping middle stripping
Power Supply AC220V5060HZ Wire Core Range 016mm2 AWG3012
Body Dimensions 470mm450mm350mm Cutting Length 01mm999999mm
Body Weight 315kg Stripping Length Head 0125mm Tail 0170mm
Blade Material HighSpeed Steel Middle Stripping Segments 16 segments customizable
Power 680W Additional Functions Automatic wire feedingretracting timed start jog adjustment
Stripping Precision Silent hybrid stepper motor 001mm Capacity 501005001000mm 4550430030002000 pieces per hour |
